Turning, milling and grinding

Prototypes through small production runs. The numbers below are machine limits. A part's geometry, workholding and process decide whether it fits, so send the drawing and we'll tell you.

CNC turning

Turned components for prototypes and production. Multi-function turning with live tooling and Y-axis handles parts that need milled features without a second setup.

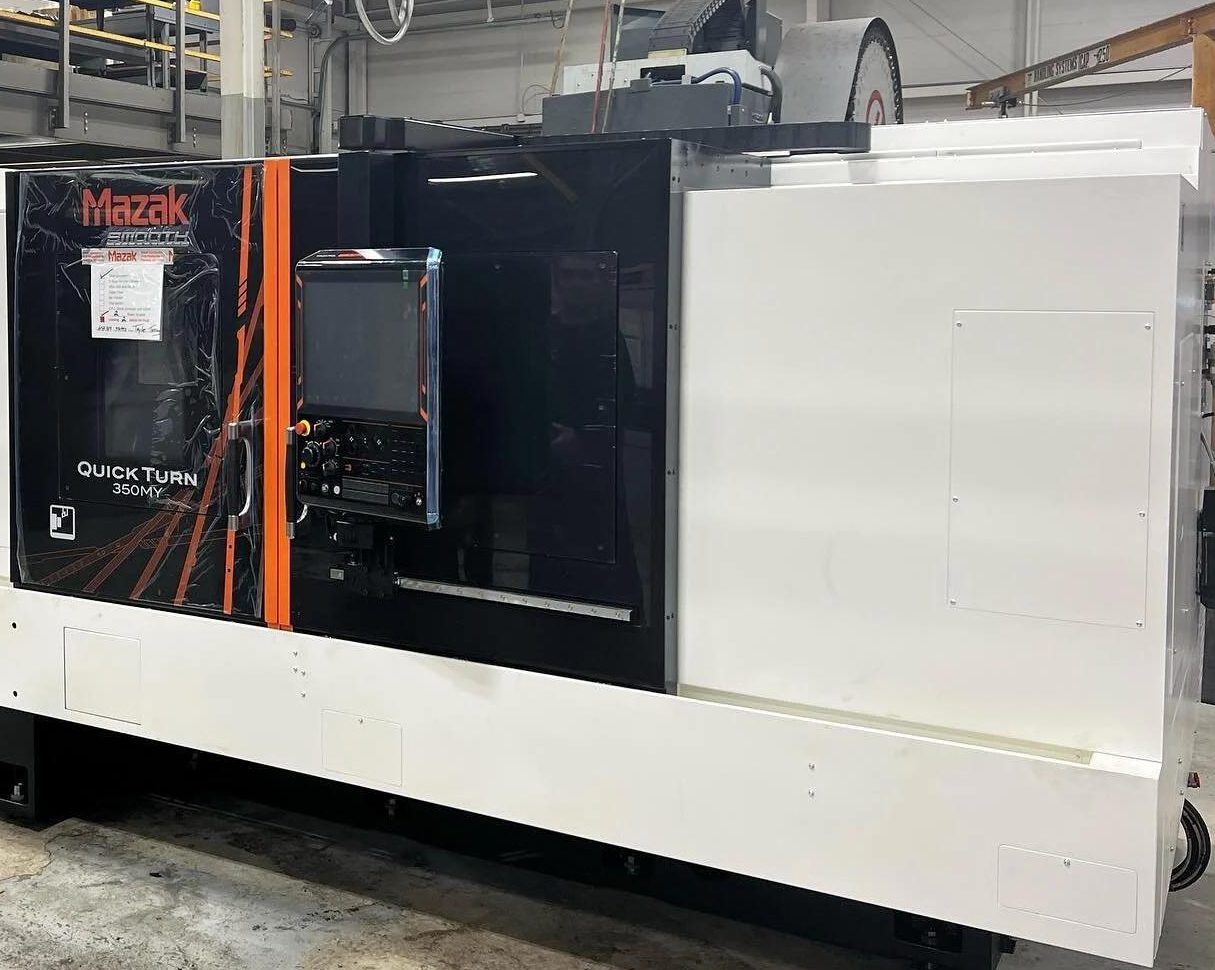

Mazak Quick Turn 350MY lathe at Taylor Turning

Our Mazak Quick Turn 350MY.

Capacity	Inch	Metric
Turning diameter	Ø15 in	380 mm
Turning length	59 in	1,500 mm
Bar diameter	Ø1.65 in	42 mm
Bar-fed turning length	7.87 in	200 mm
Features	Live tooling, Y-axis, multi-function turning

CNC milling

3 and 4-axis machining on Haas vertical machining centers, plus 3+2 five-axis work for parts that need several faces machined in one setup. From prototype development through small production runs.

Capacity	Inch	Metric
X travel	64 in	1,626 mm
Y travel	32 in	813 mm
Z travel	30 in	762 mm
Table load	4,000 lb	1,814 kg

Grinding and honing

Internal and external diameters, flat surfaces and precision bores. If you have a specific finish or tolerance, send the drawing and we'll review the application, workholding and process.

Process	Machine	Capacity
ID grinding	Bryant	Ø10 × 6 in long
OD grinding	Okamoto	Ø12 × 36 in long
Surface grinding	Surface grinder	6 × 18 in
Wet surface grinding	Okamoto	16 × 32 in
Jig grinding	Moore G18	Ø4 in
Honing	Sunnen	Ø2 in

Materials

Aluminum, brass, bronze, copper, low and high-carbon steel, stainless, tool steel and plastics.

Working with something else? Ask. We'll tell you plainly if it's a fit.

Have a part in mind?

Send a drawing, material, quantity and the date you need it. Include critical dimensions, finish requirements and any outside processing so we can quote the complete job.

Request a quote

Listed capacities are equipment limits. Part geometry, workholding and process requirements determine whether a job fits.
